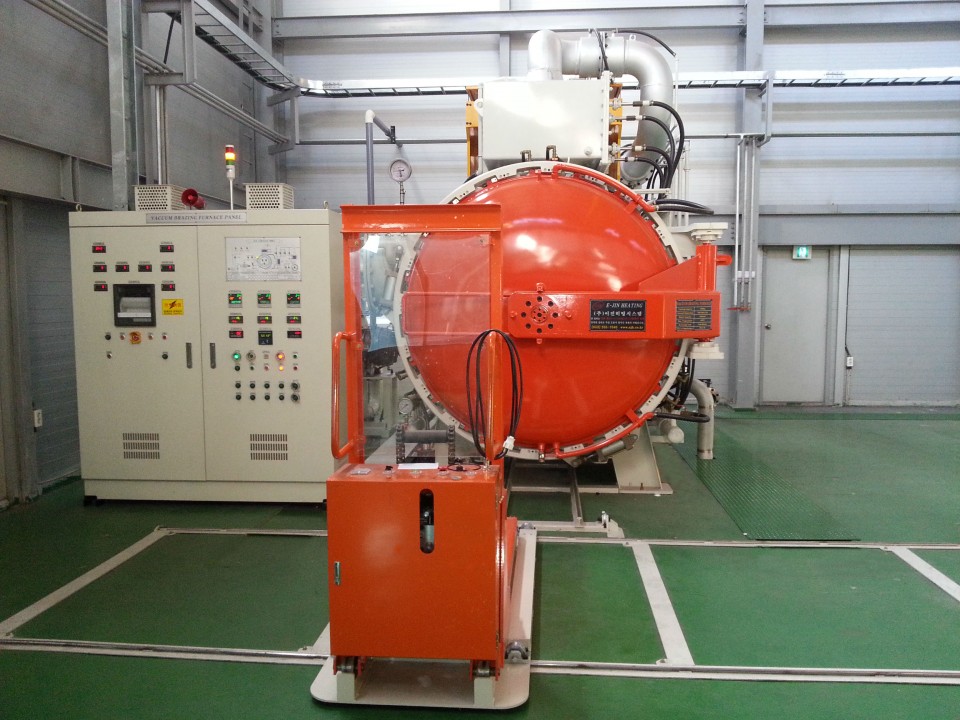

Multipurpose-Nickel, Copper Vacuum Brazing Furnace (800Kg)
본문
◆ Equipment Specifications ◆
1) 380V × 3P × 250Kw/h ( 3Part Control )
2) Working Temp. : 1,050 ~ 1,200℃, Max. Temp. : 1,300℃
3) Work Zone Dimensions : 700(w) × 650(h) × 1,500(d)
4) Nor' Capcity : 800 Kg / ch
5) Input Gas : Nitrogen ( N2 )
6) Insulation : Graphite Board, Graphite felt , Graphite foil etc.
7) Cooling Blower : Ф500 × 260h,
8) Max. Vacuum Level : 5.0×10 -3 Torr
9) The cooling water pipes are screw assembly type, and the corrosion-free pipes are selected by SUS 304 and bronze without corrosion.
1) 380V × 3P × 250Kw/h ( 3Part Control )
2) Working Temp. : 1,050 ~ 1,200℃, Max. Temp. : 1,300℃
3) Work Zone Dimensions : 700(w) × 650(h) × 1,500(d)
4) Nor' Capcity : 800 Kg / ch
5) Input Gas : Nitrogen ( N2 )
6) Insulation : Graphite Board, Graphite felt , Graphite foil etc.
7) Cooling Blower : Ф500 × 260h,
8) Max. Vacuum Level : 5.0×10 -3 Torr
9) The cooling water pipes are screw assembly type, and the corrosion-free pipes are selected by SUS 304 and bronze without corrosion.
