- CategoryVacuum Brazing Furnace
- ClientW.H

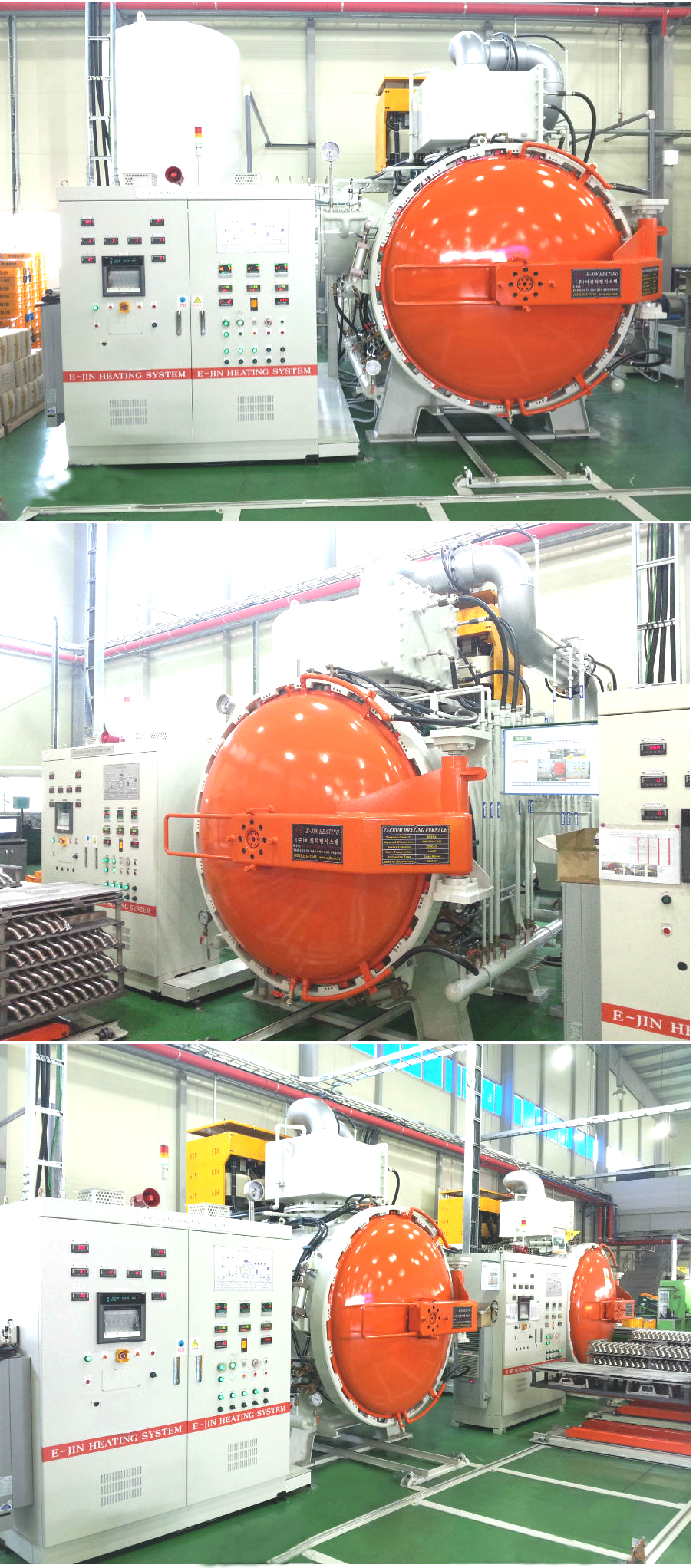

- ProjectMarch, 2013 / Nickel Vacuum Brazing Furnace (800Kg) produced & installed - No.2
본문
◆ Equipment Specifications ◆ | |
Power | 380V × 3P × 200Kw Max. 250Kw (Single-Phase 3Part) |
Working Temperature | 1,050 ~ 1,200℃ / Max : 1,300℃ |
Max. Work Zone Dimensions | 700W × 700H × 1,500D |
Loading Weight | 800 Kg / ch |
Input Gas | Nitrogen ( N₂ ) |
Insulation | Graphite Felt + Graphite Foil |
Cooling Blower | Turbo Type Ø500 × 260H |
Max. Vacuum Level | 5.0×10-3 Torr |
Cooling Water Piping | SUS 304 / Bronze |
◆ Composition of Equipment ◆ | |
Vacuum Brazing Furnace | 1EA |
Rotary Pump | 1EA |
Booster Pump | 1EA |
Fin Type Copper Heat Exchanger | 3EA |
Movable Electric Lift for All Directions | 1EA |
Cooling Blower | 1EA |
Electric Control Panel | 1Sheet |
N2 Sub Tank ( 3㎥ ) | 1EA |
