S.B.M상세보기
- CategoryContinuous Belt Type Brazing Furnace
- ClientS.B.M

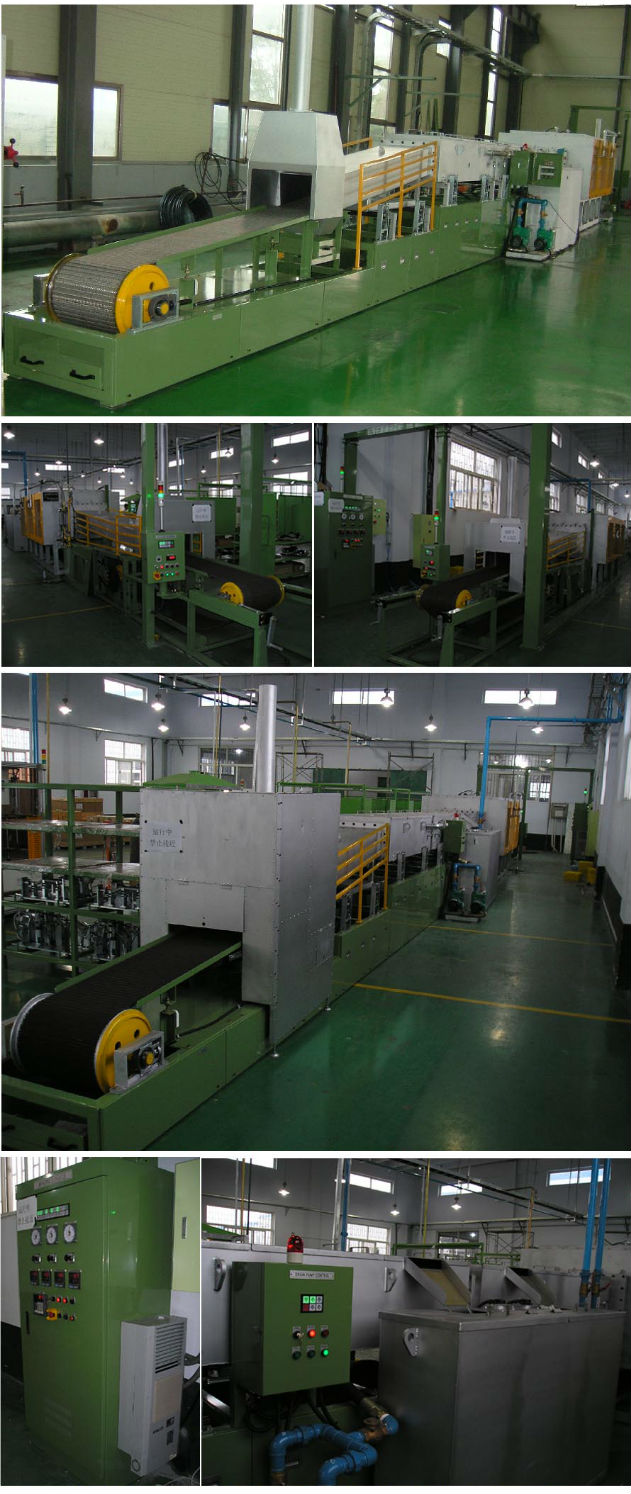

- ProjectFebruary, 2009 / Continuous Belt Type Brazing Furnace installed - No.1 / Export to China
본문
◆ Equipment Specifications ◆
1) Power : 380V × 3P × 50Hz× 160Kw ( 2Part )
2) Heating Control Type : S.C.R PID
3) Inner Size : 500W × 290H × 2,300D
4) Mesh Belt Speed : Max 850 r.p.m
5) Temperature : Max. 1,200℃, Nor' : 1,120℃~1,150℃
6) Input Gas for Creating Atmosphere Gas : LP GAS + AIR → Nickel Catalyst → Furnace
