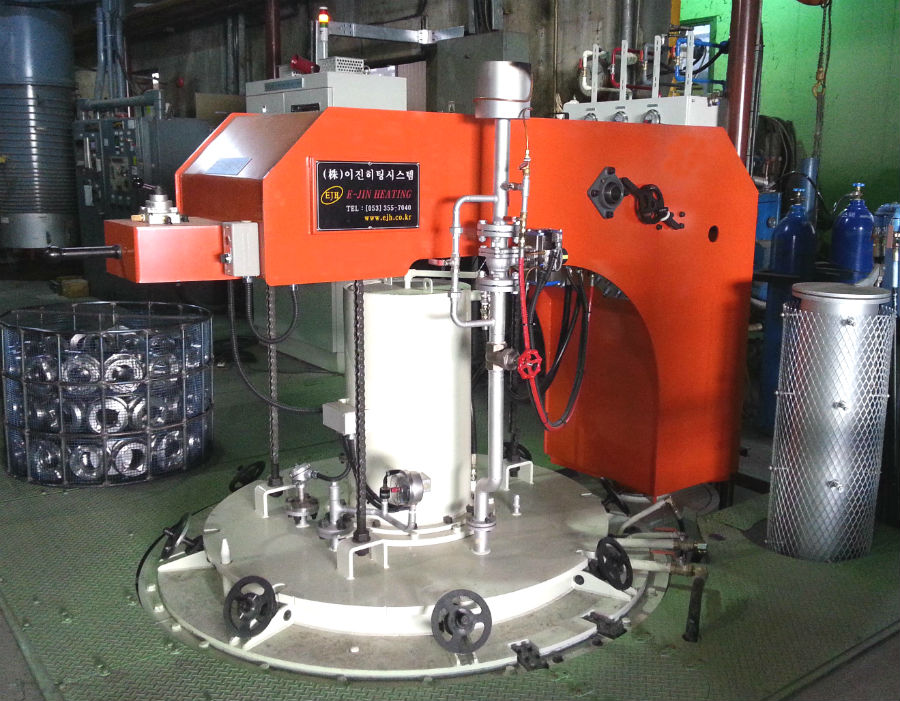

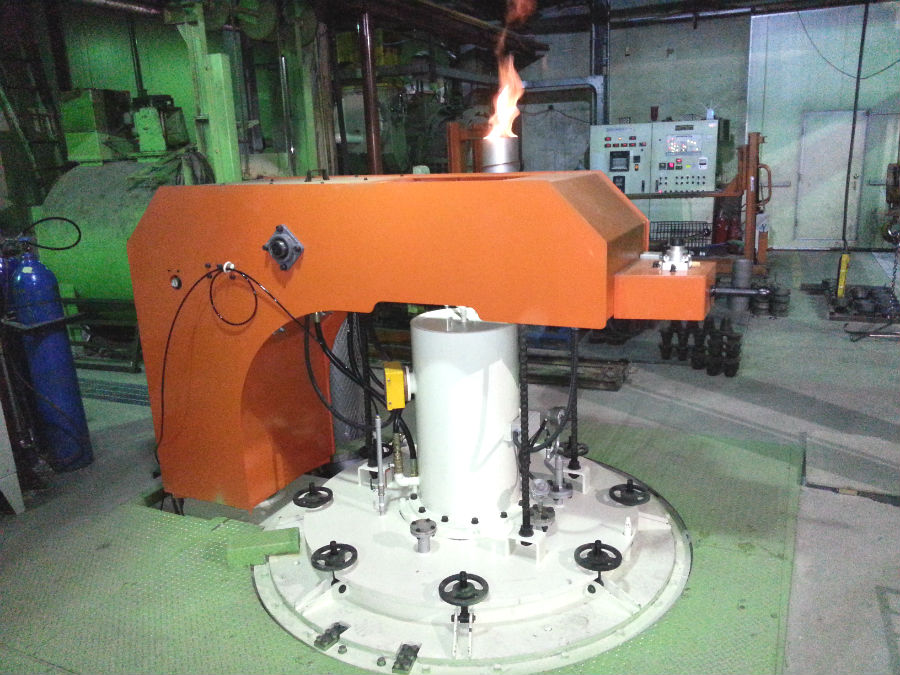

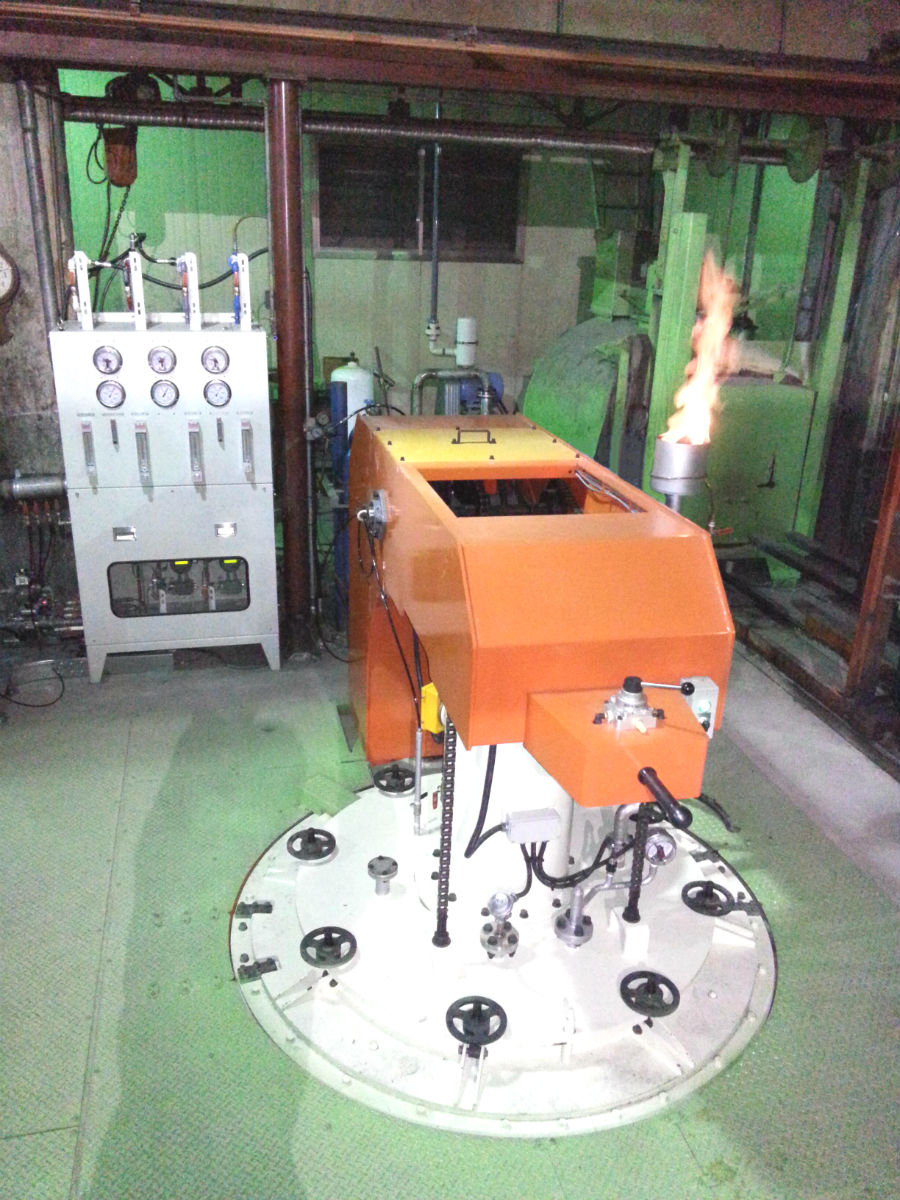

- CategoryPit Type Heat Treatment Furnace
- ClientS.S

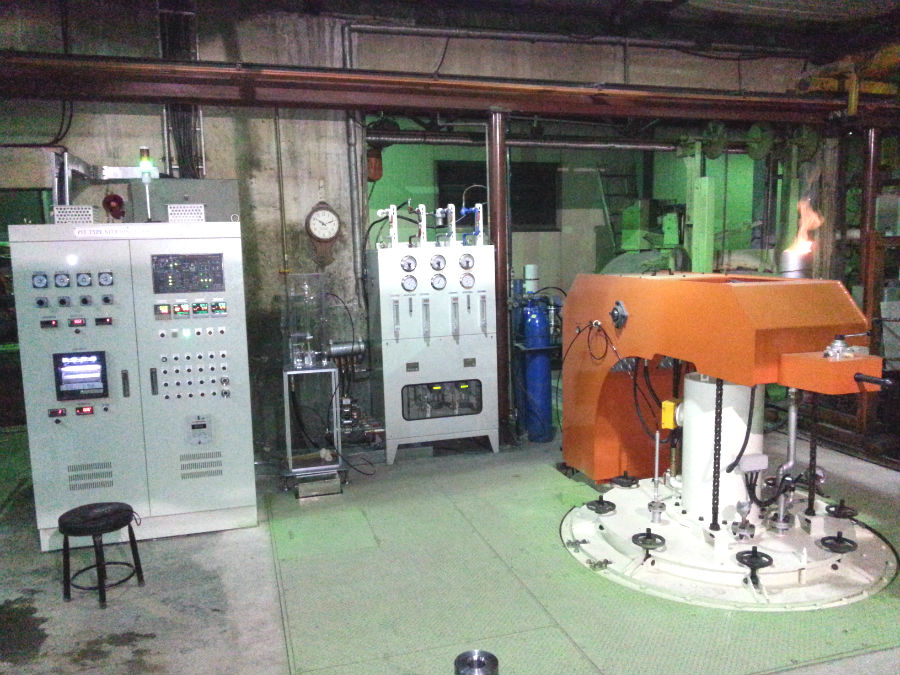

- ProjectNovember, 2013 / Vacuum Purge Type Pressure Gas Nitriding Furnace Installed
본문
◆ Equipment Specifications ◆ | ||
Power | 220V × 3P × 120Kw ( 3Part ) | |
Working Temperature | NOR. 550℃ ~ 650℃ / Max. 700℃ | |
Max. Work Zone Dimensions | Ø1,000 × 1,300H | |
| Loading Weight | 1.5 ton / ch |

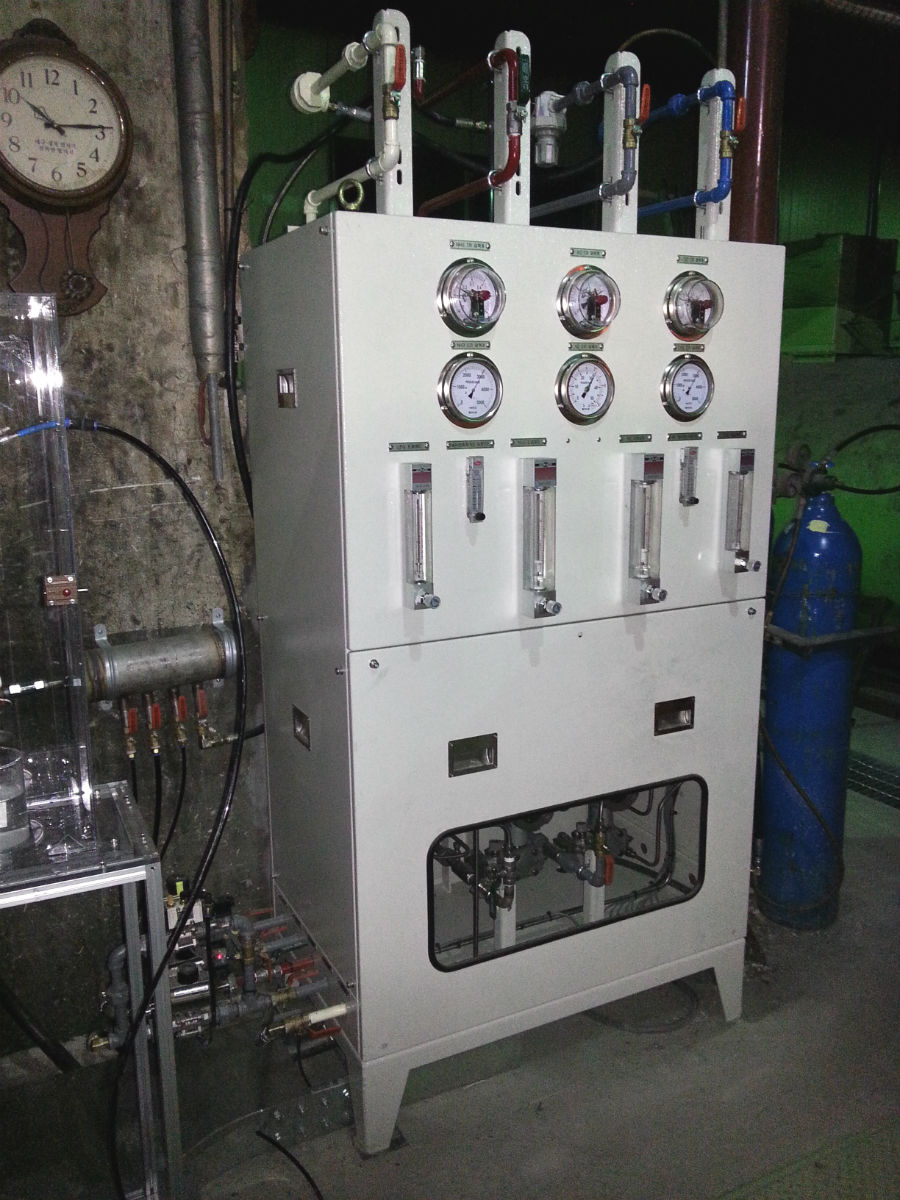

| Input Gas | Ammonia(NH3), Nitrogen(N₂), Carbon Dioxide(CO2) |
| Inner Pot Cooling System | Vacuum Type Cooling Blower / 3Way Heat Exchanger |
| Outer Pot Cooling System | 2 Suction Blowers / Automatic On-off Exhaust Port |
| Cooling Process Time | Processing 1ton, keeping the heating at 550~580℃ Within 4hours, cooling under 100℃ completed |
|
Type of Insulation
| Ceramic Wool + Firebrick |
