K.N.T.C상세보기
- CategoryPit Type Heat Treatment Furnace
- ClientK.N.T.C

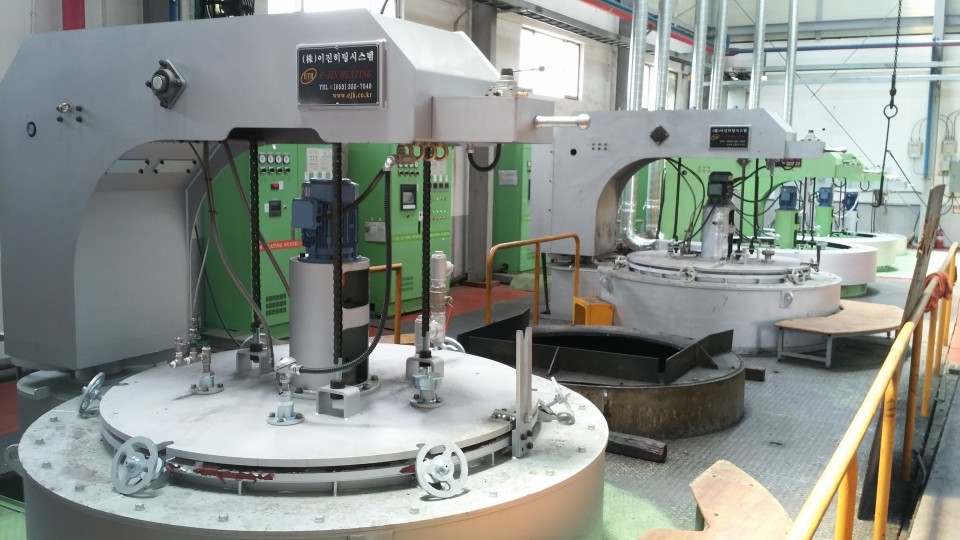

- ProjectApril, 2014 / S.R Heat Treatment Furnace No.2 & Heating Furnace No.2 & Subsidiary Equipments Installed
본문

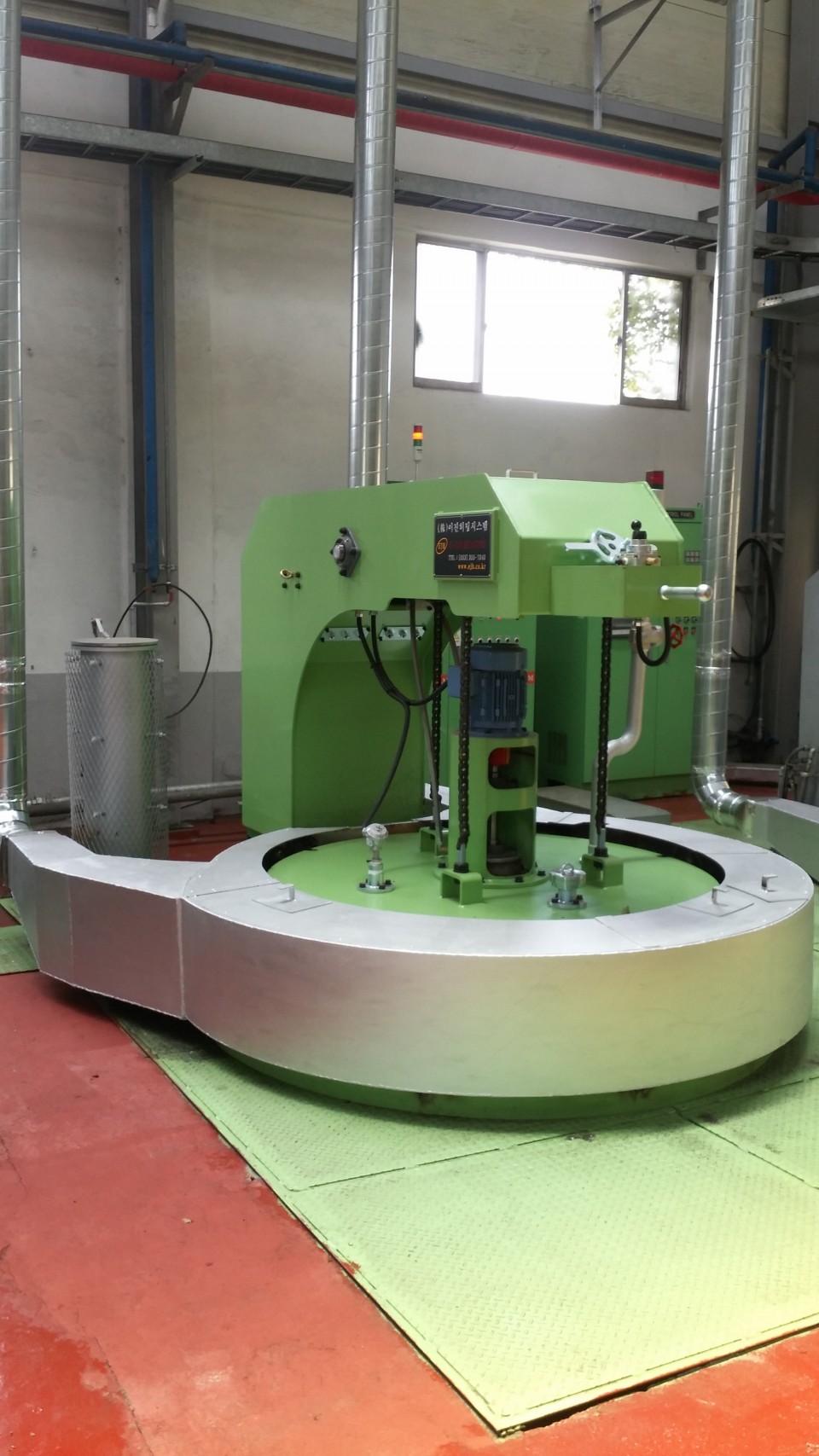

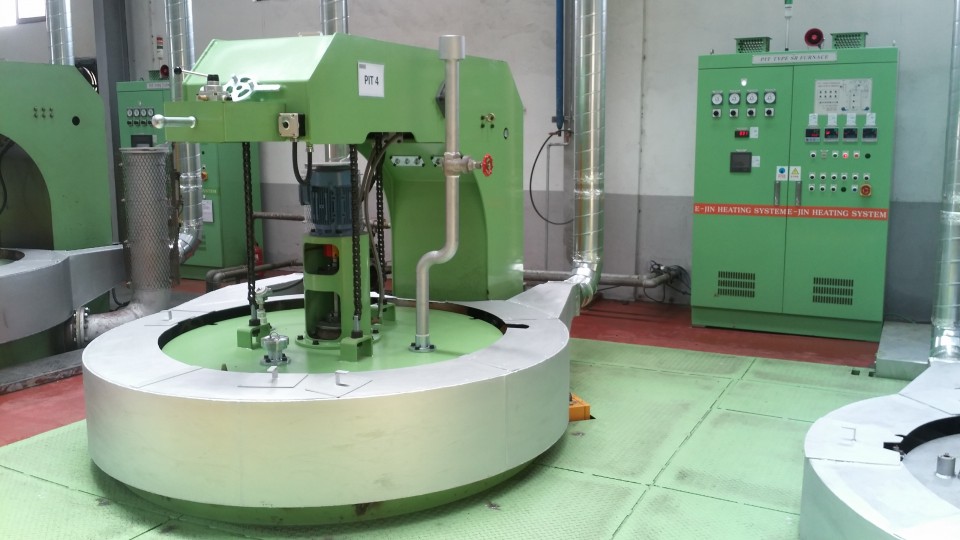

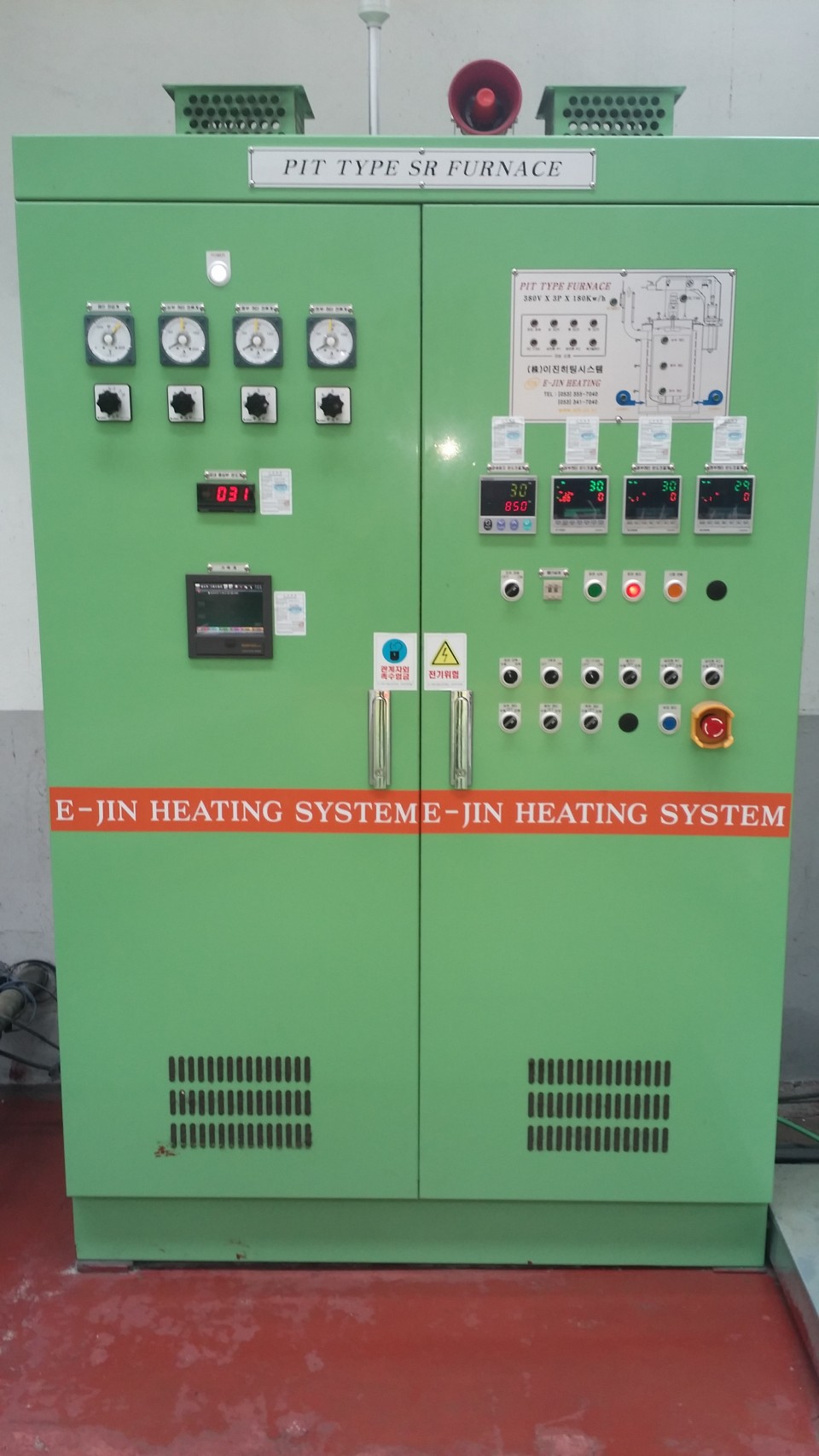

◆ S.R Furnace Specifications ◆ | ||
Power | 380V × 3P × 180Kw ( 3Part ) | |
Working Temperature | Max. 800℃ | |
Max. Work Zone Dimensions | Ø1,350 × 2,000H | |
Loading Weight | 3 ton / ch | |
Outer Pot Cooling System | 2 Suction Blowers / Automatic On-off Exhaust Port | |
Type of Insulation
| Ceramic Wool + Firebrick | |
|
| |

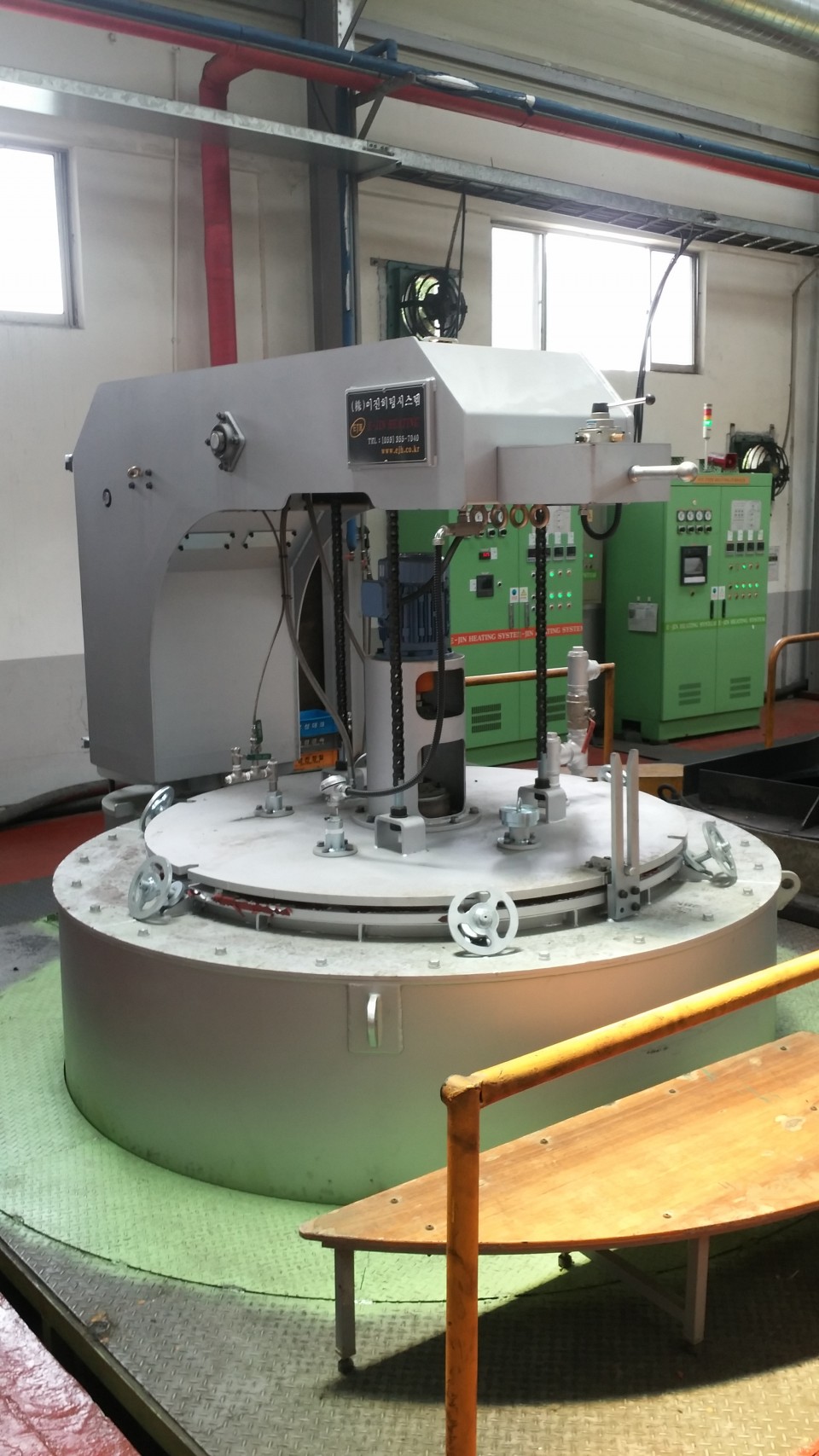

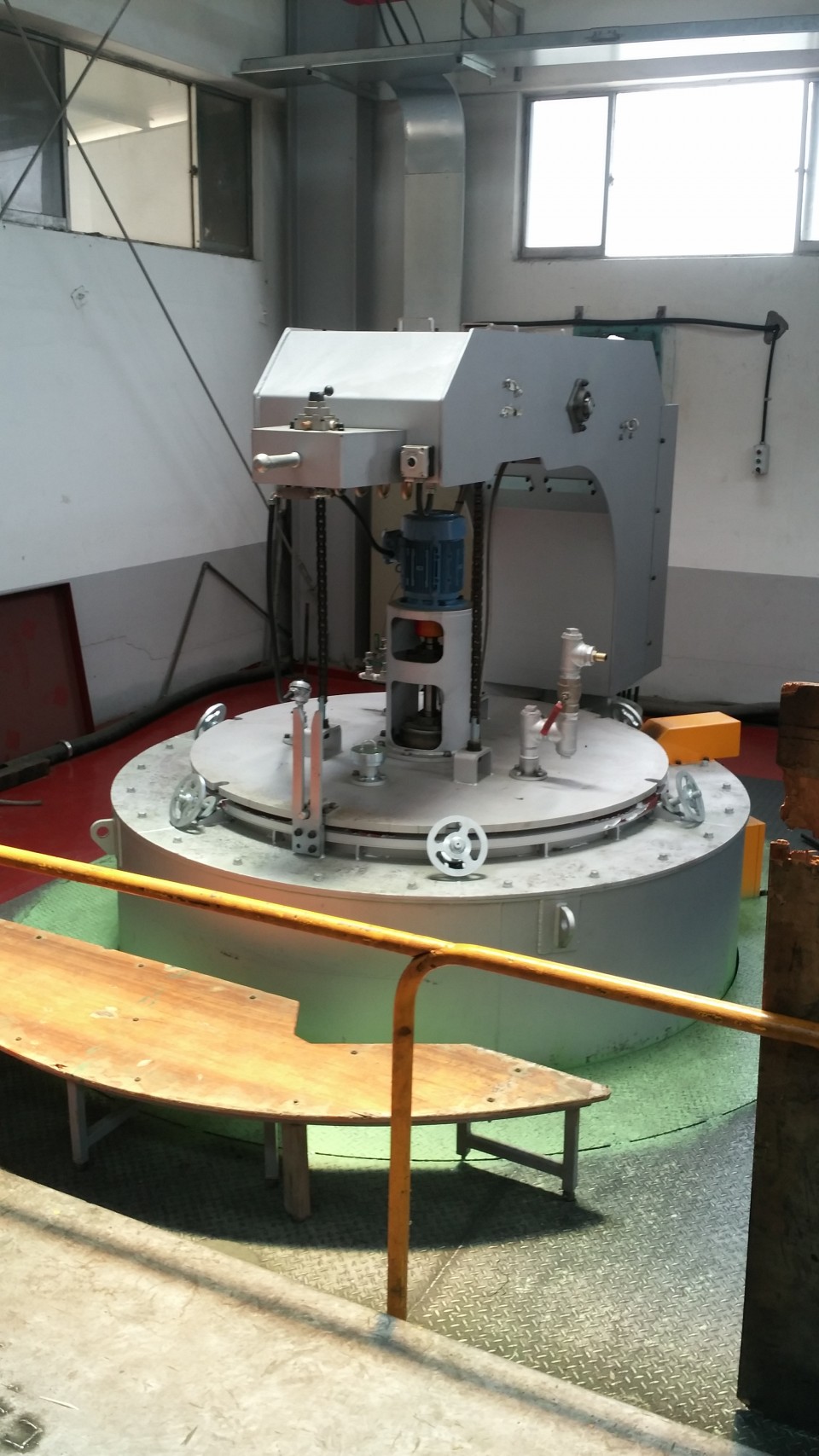

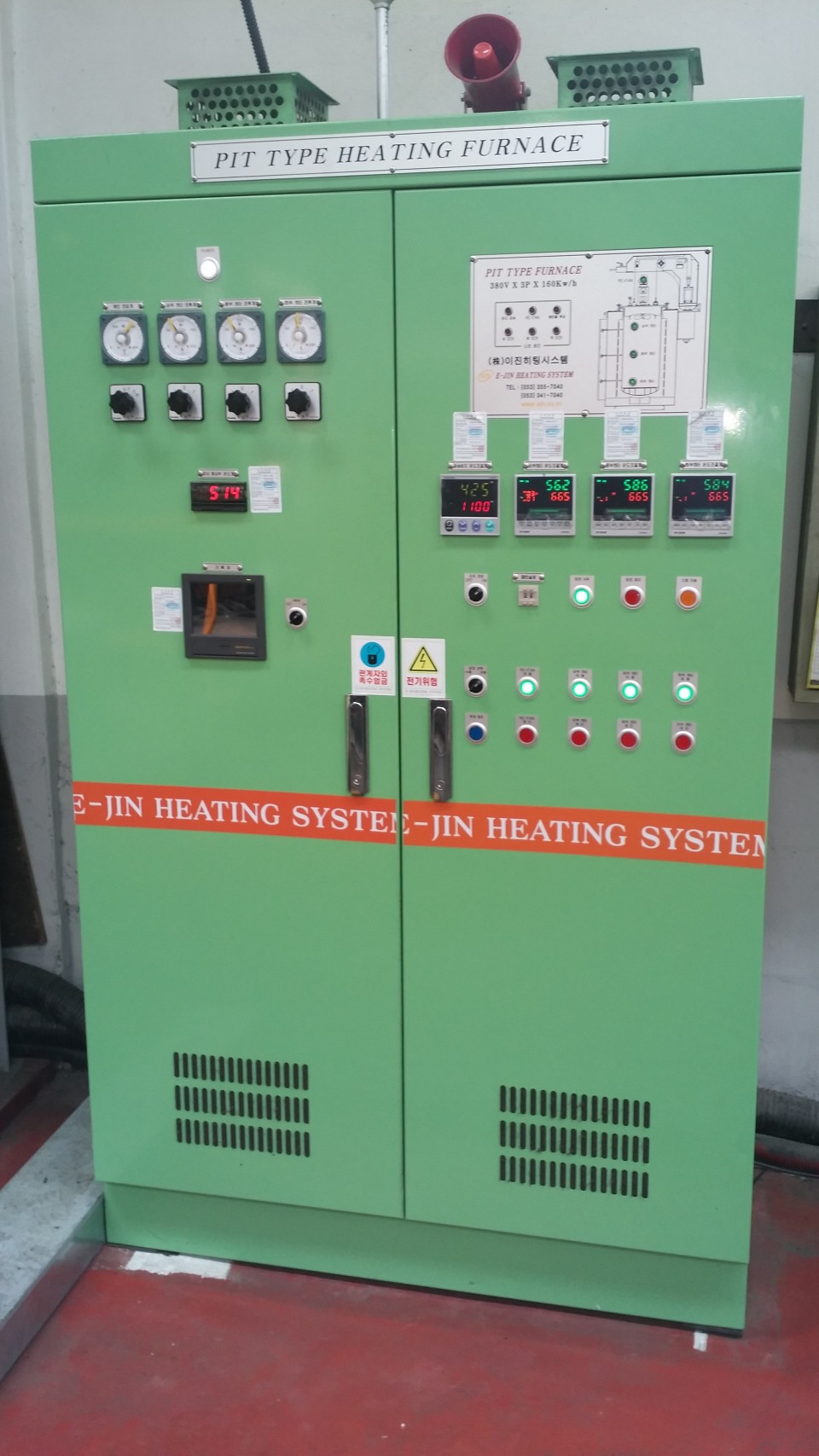

◆ Heating Furnace Specifications ◆ | ||
Power | 380V × 3P × 160Kw ( 3Part ) | |
Working Temperature | Max. 1,100℃ | |
Max. Work Zone Dimensions | Ø1,350 × 1,500H | |
Loading Weight | 2 ton / ch | |

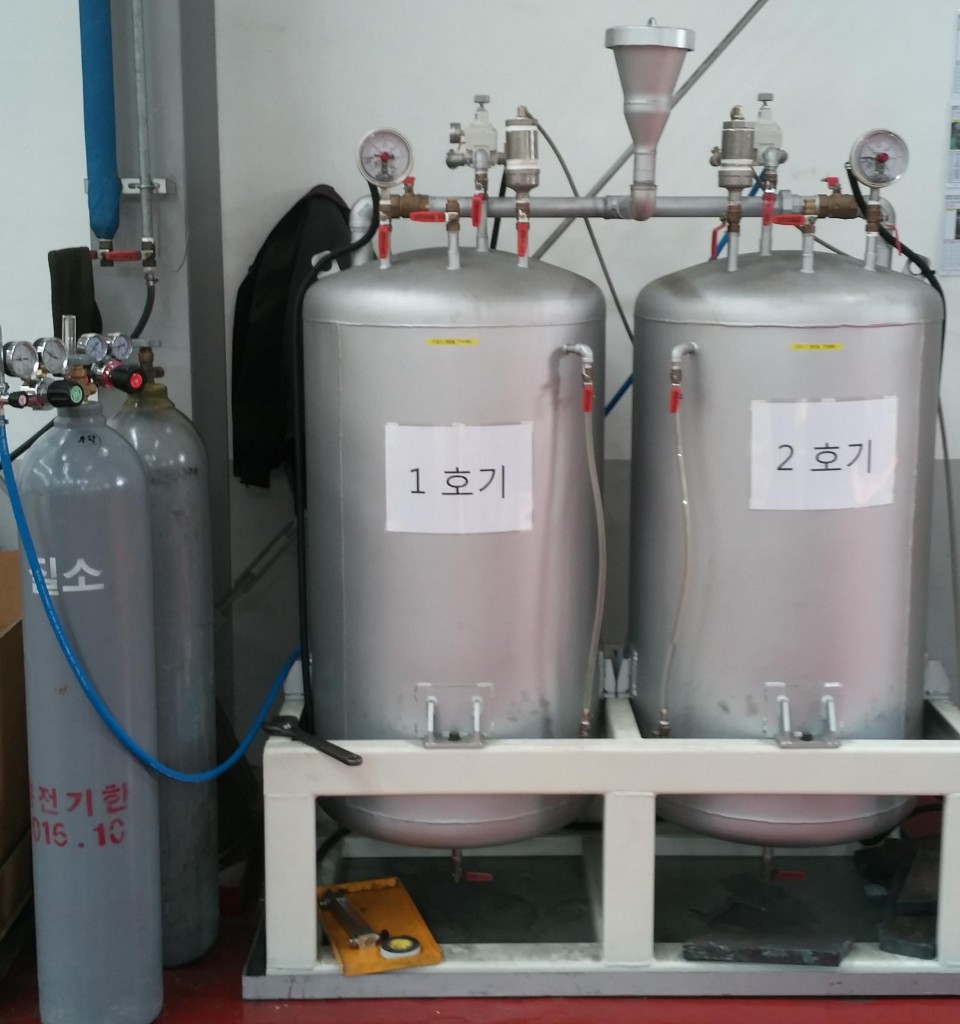

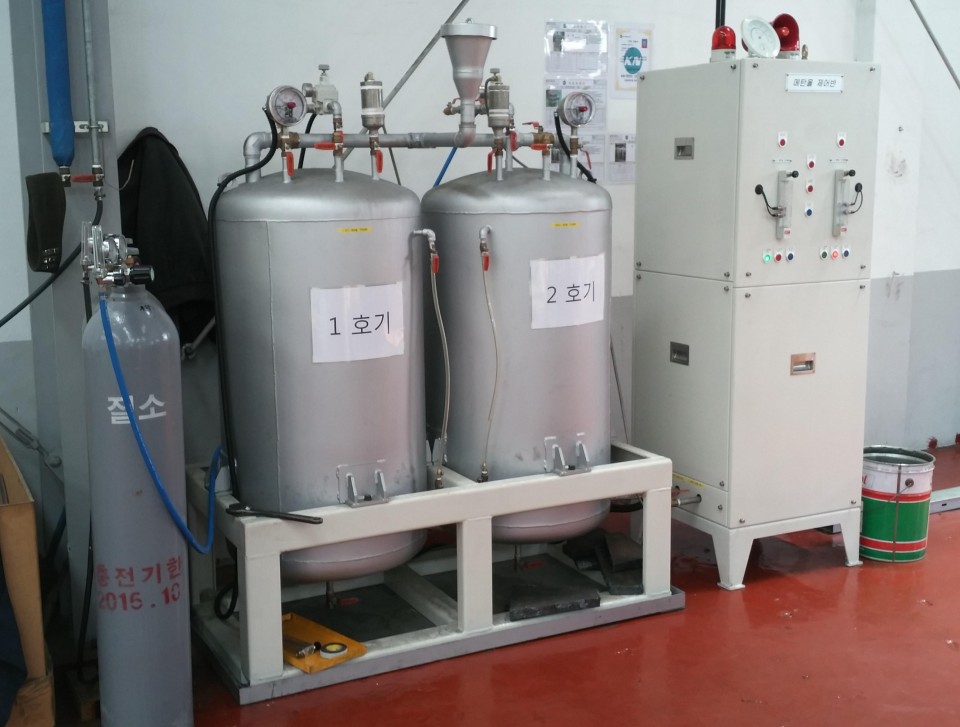

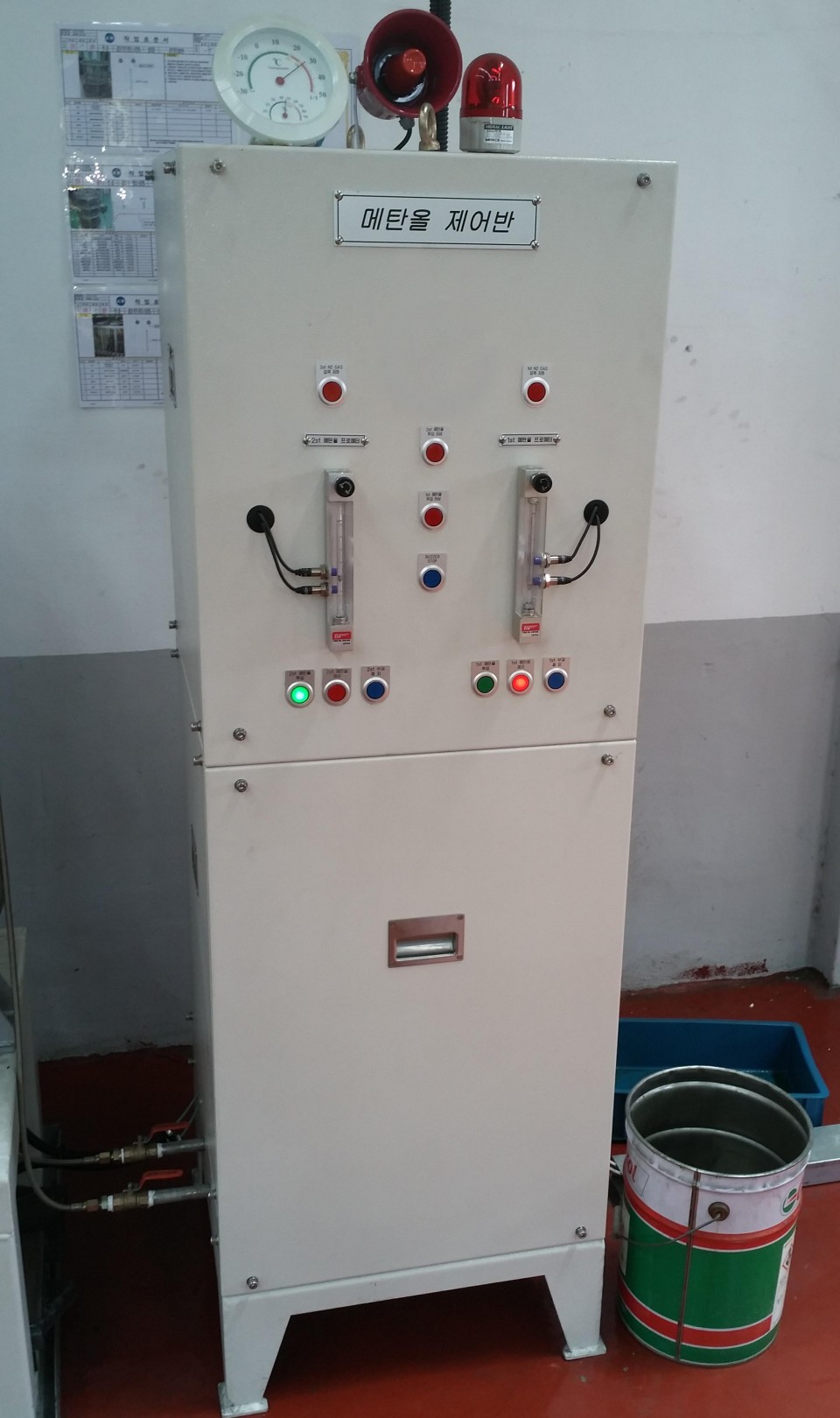

Input Gas | Methanol | |
Type of Insulation
| Firebrick | |
