Y.P.V.F상세보기
- CategoryPit Type Heat Treatment Furnace
- ClientY.P.V.F

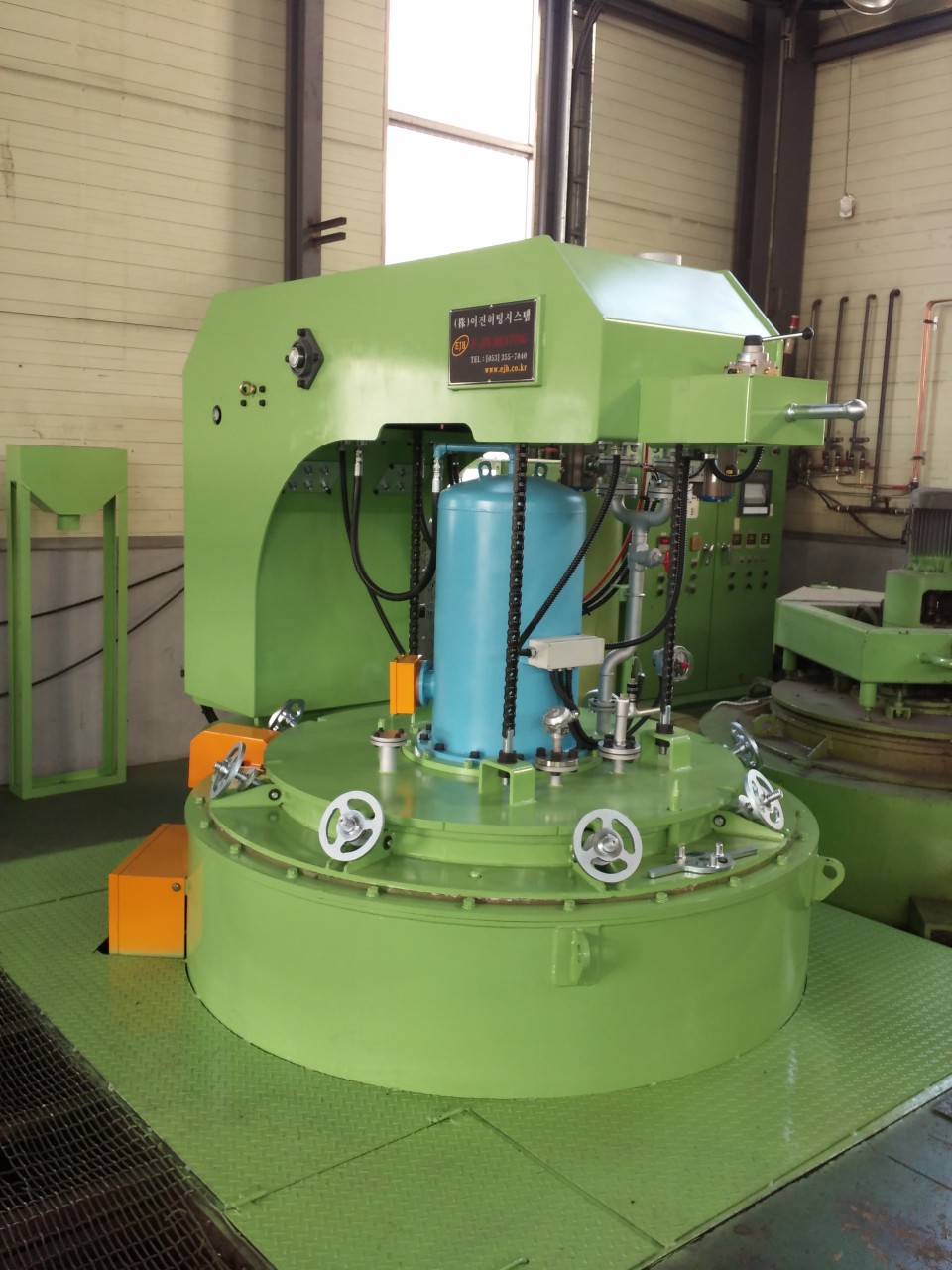

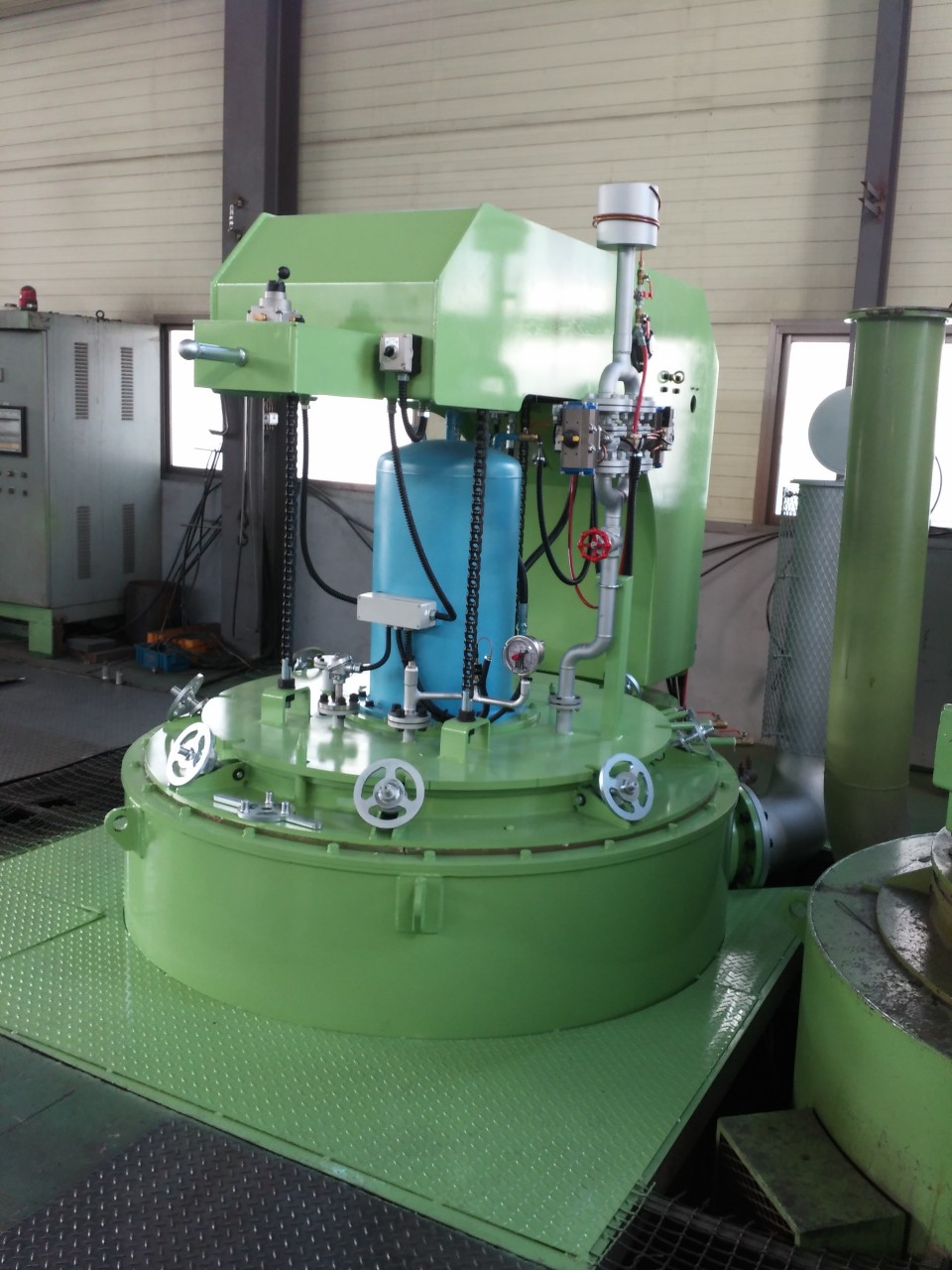

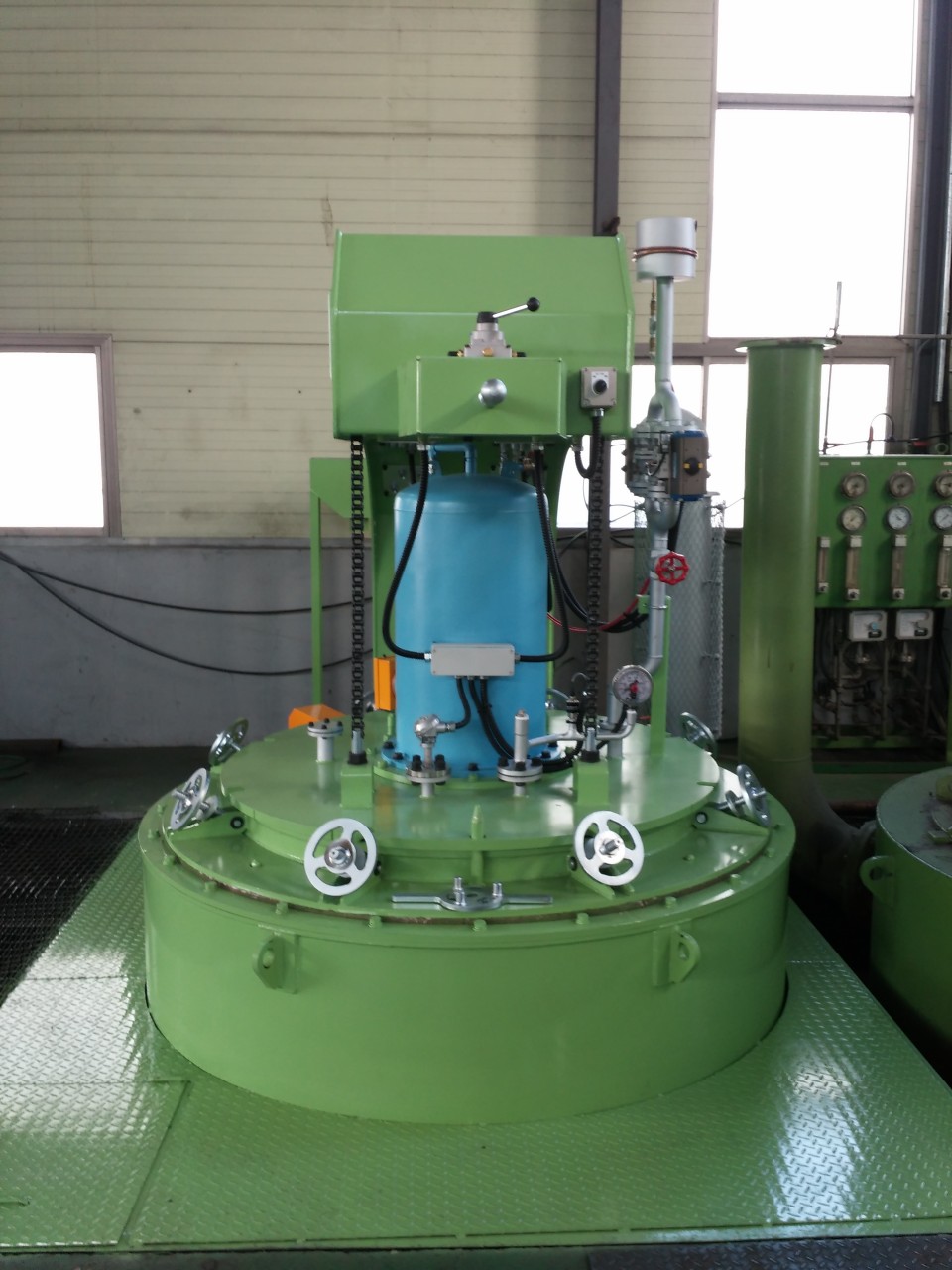

- ProjectMarch, 2015 / Gas Nitriding Furnace Installed
본문
◆ Equipment Specifications ◆ | ||
Power | 380V × 3P × 150Kw ( 3Part ) | |
Working Temperature | NOR. 550℃ ~ 650℃ / Max. 800℃ | |
| Max. Work Zone Dimensions | Ø1,200 × 2,000H |
| Loading Weight | 2 ton / ch |
| Input Gas | Ammonia(NH3), Nitrogen(N₂), Carbon Dioxide(CO2) |
| Pot Material | SUS 316L |
| Outer Pot Cooling System | 2 Suction Blowers / Automatic On-off Exhaust Port |
| Cooling Process Time | Processing 1ton, keeping the heating at 550~580℃ Within 4hours, cooling under 100℃ completed |
|
Type of Insulation
| Ceramic Wool + Firebrick |
