- CategoryPit Type Heat Treatment Furnace
- ClientD.K

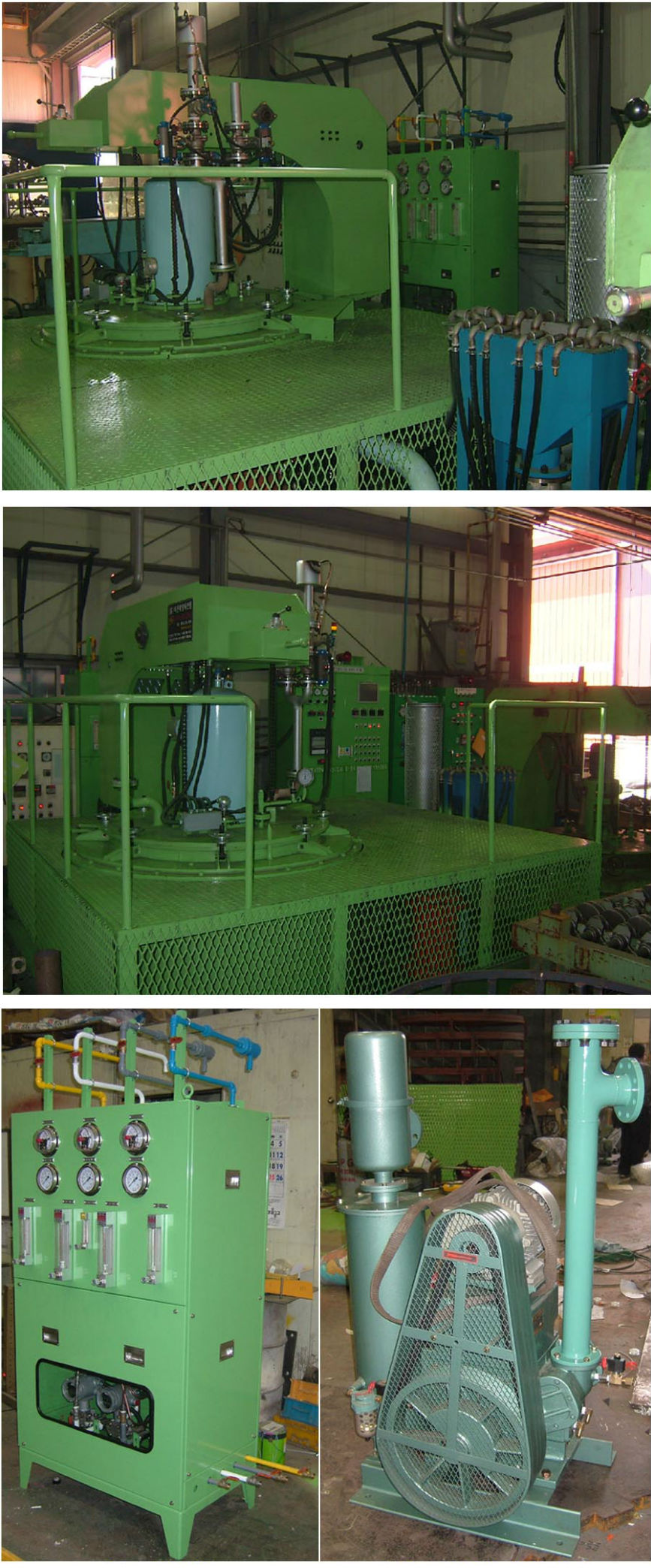

- ProjectDecember, 2009 / Vacuum Purge Type Pressure Gas Nitrriding Furnace installed
본문
◆ Equipment Specifications ◆ | |
Power | 380V × 3P × 110Kw (3Part) |
Working Temperature | 550℃ / Max. 700℃ |
Max. Work Zone Dimensions | Ø1,000 × 1,500H |
Loading Weight | 1 ton / ch |
Input Gas | Ammonia(NH3), Nitrogen(N₂), Carbon Dioxide(CO2) |
Inner Pot Cooling System | Vacuum Type Cooling Blower / 3Way Heat Exchanger |
Outer Pot Cooling System | 2 Suction Blowers / Automatic On-off Exhaust Port |
Cooling Process Time | Processing 1ton, keeping the heating at 550~580℃ Within 4hours, cooling under 100℃ completed |
Insulation | Ceramic Wool + Fire Brick |
