J.A상세보기
- CategoryPit Type Heat Treatment Furnace
- ClientJ.A

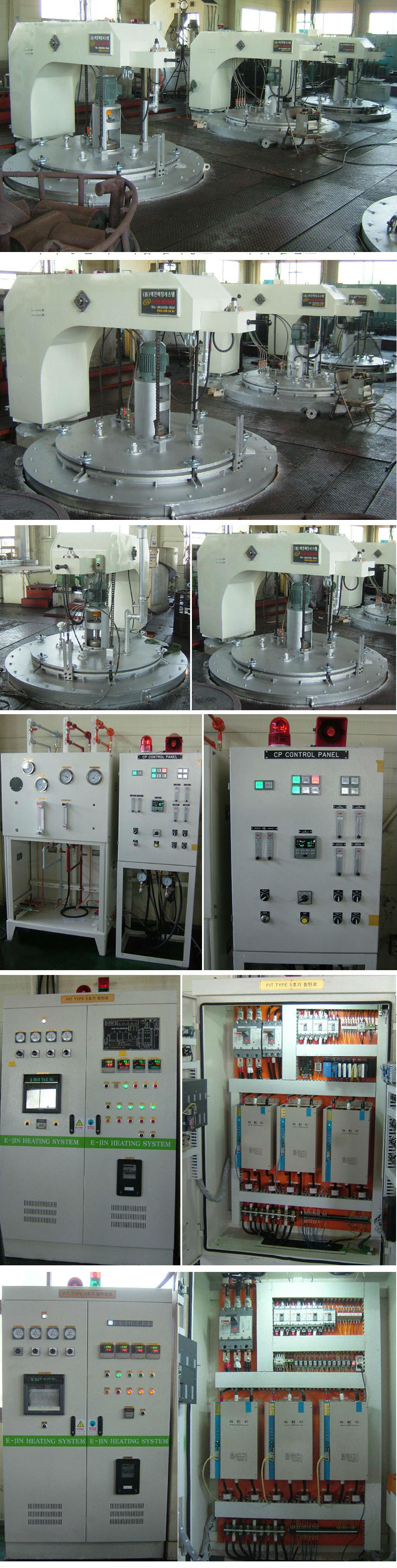

- ProjectJuly, 2011 / Carburizing Furnace & Tempering Furnace installed additionally
본문
◆ Specification of Carburizing Furnace ◆ | |
Power | 220V × 3P × 240Kw (3Part) |
Working Temperature | 950℃ / Max. 1,000℃ |
Max. Work Zone Dimensions | Ø1,350 × 1,800H |
Loading Weight | 4 ton / ch |
Input Gas | Methanol(CHO₂), Nitrogen(N₂), Air, LPG |
Insulation | Fire Brick |
◆ Specification of Tempering Furnace ◆ | |
Power | 220V × 3P × 200Kw (3Part) |
Working Temperature | 150℃~650℃ / Max. 700℃ |
Max. Work Zone Dimensions | Ø1,350 × 1,800H |
Loading Weight | 4 ton / ch |
Insulation | Fire Brick |
