J.L상세보기
- CategoryPit Type Heat Treatment Furnace
- ClientJ.L

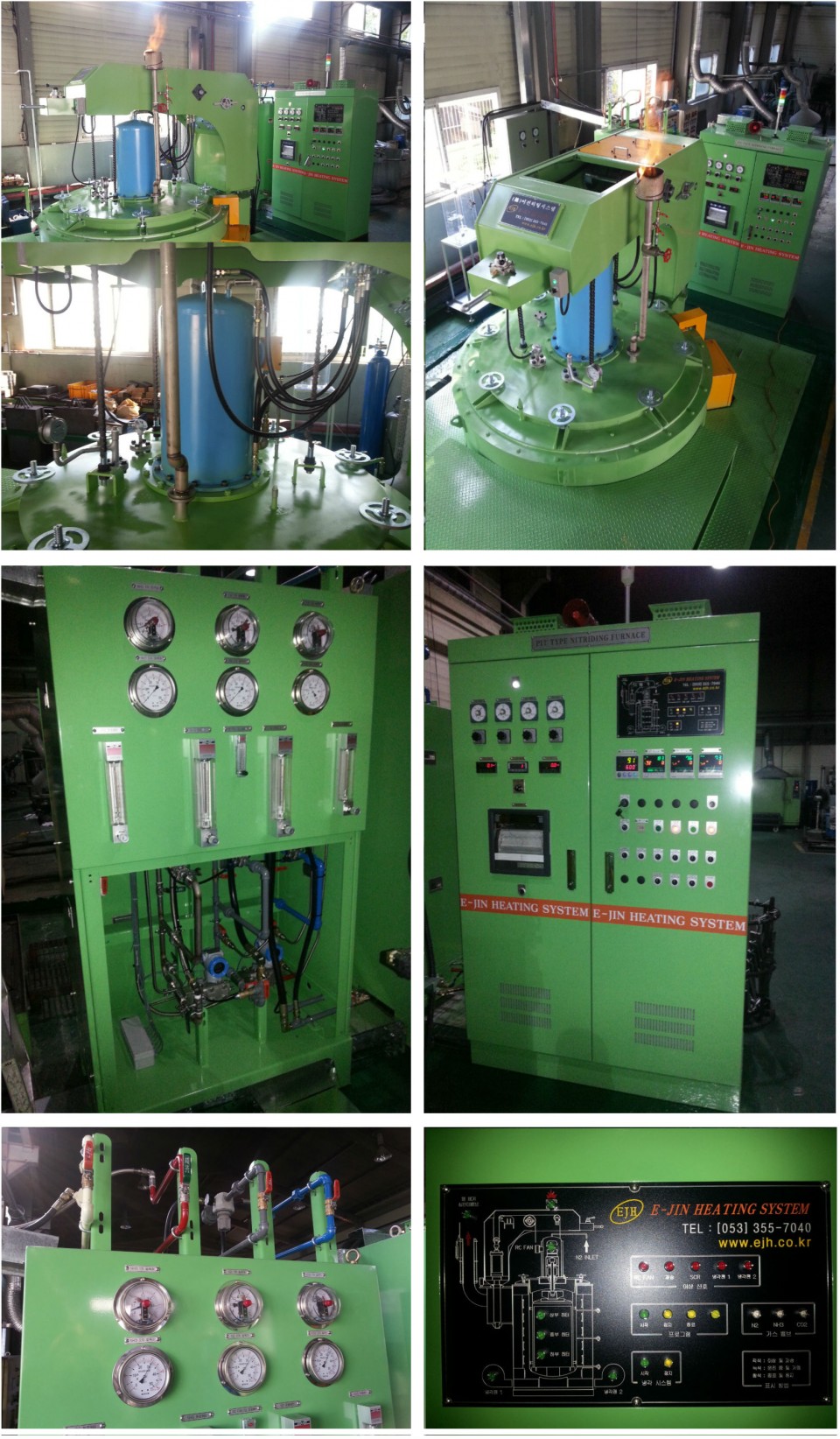

- ProjectOctober, 2013 / Gas Nitriding - Nitrogen Pressure Tempering Furnace Installed
본문
◆ Equipment Specifications ◆ | |
Power | 380V × 3P × 180Kw (3Part) |
Working Temperature | NOR. 550℃ ~ 650℃ / Max. 800℃ |
Max. Work Zone Dimensions | Ø1,200(1250) × 2,000H |
Loading Weight | 2 ton / ch |
Input Gas | Ammonia(NH3), Nitrogen(N₂), Carbon Dioxide(CO2) |
Inner Pot Cooling System | Vacuum Type Cooling Blower / 3Way Heat Exchanger |
Outer Pot Cooling System | 2 Suction Blowers / Automatic On-off Exhaust Port |
Cooling Process Time |
Processing 1ton, keeping the heating at 550~580℃ Within 4hours, cooling under 100℃ completed
|
Insulation | Ceramic Wool + Fire Brick |
