- CategoryVacuum Heat Treatment Furnace
- ClientD.K
- ProjectMarch, 2015 / Vacuum Heat Treatment Furnace (700Kg) installed
본문
◆ Equipment Specifications ◆ | ||
Power | 220V × 3P × 200Kw Max. 250Kw (Single-Phase 3Part) | |
Working Temperature | 1,050 ~ 1,200℃, Max. Temp. : 1,300℃ | |
Max. Work Zone Dimensions | 700W × 700H × 1,200D | |
Loading Weight | 700 Kg / ch | |
Input Gas | Nitrogen ( N₂ ) | |
Insulation | Graphite Felt + Graphite Foil | |
Cooling Blower | Turbo Type Ø500 × 260H | |
Max. Vacuum Level | 5.0×10-3 Torr | |
Cooling Water Pipe | SUS 304 / Brass | |
|
| |
◆ Composition of Equipment ◆ | ||

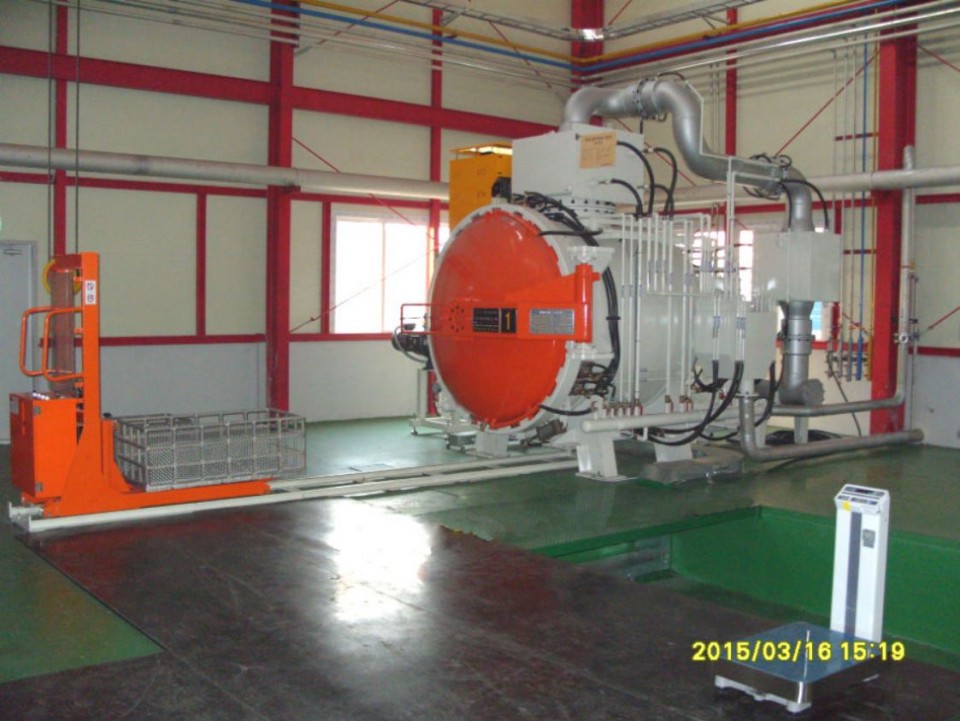

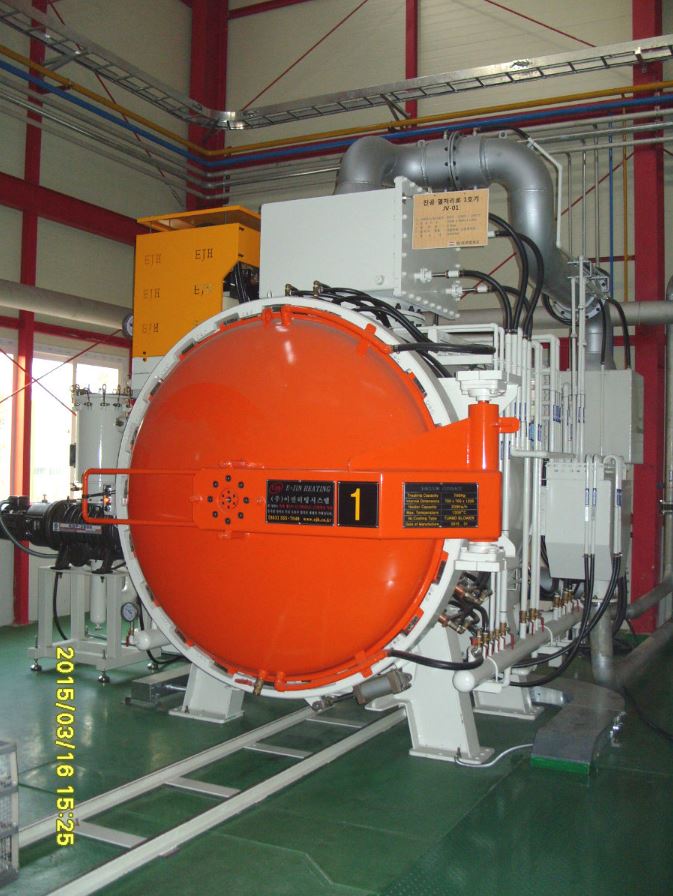

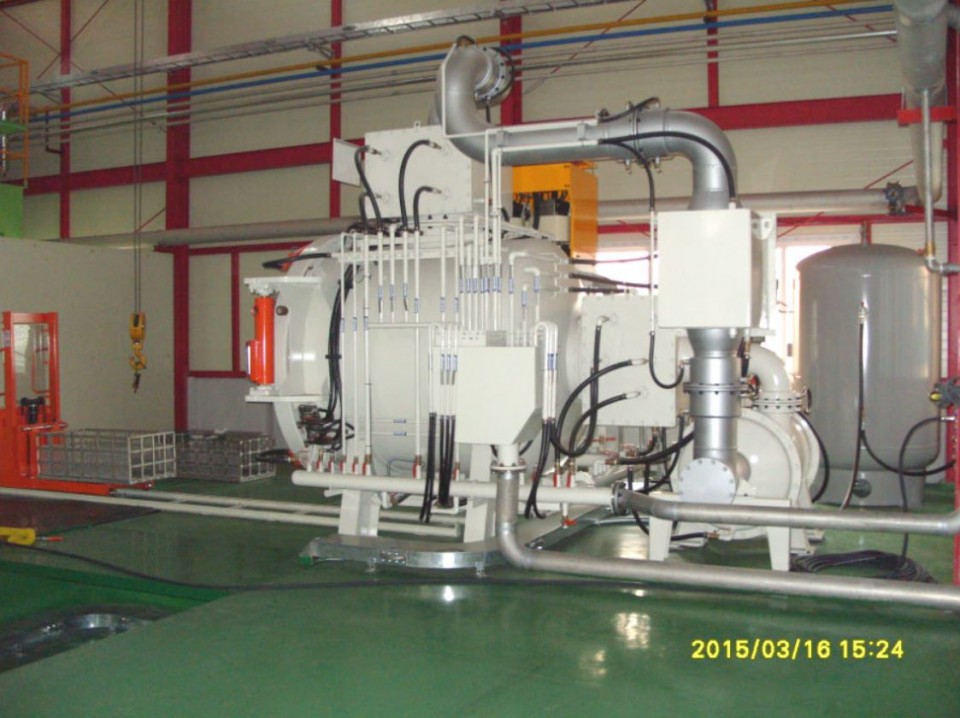

Vacuum Heat Treatment Furnace | 1EA | |

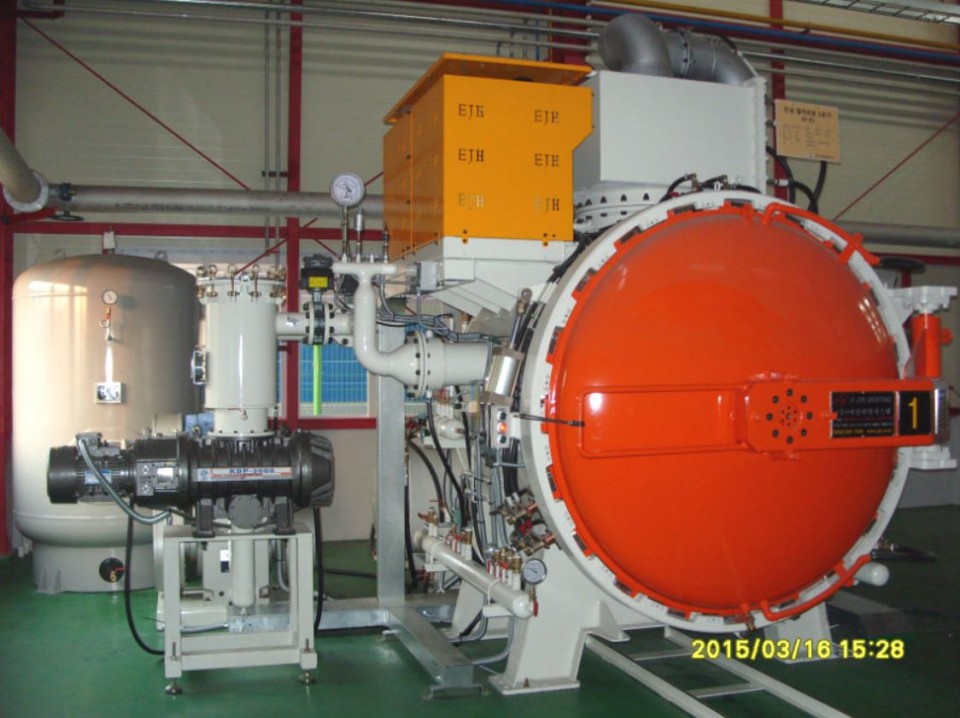

Rotary Pump & Oil Mist Trap | 1EA | |
Booster Pump | 1EA | |
Fin Type Copper Heat Exchanger | 3EA | |

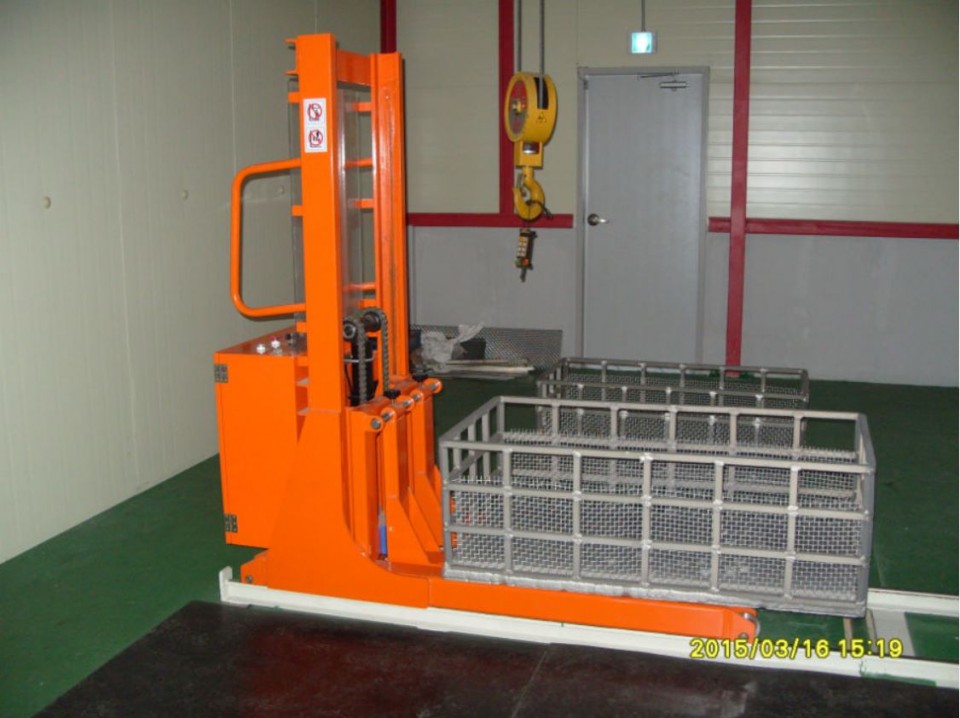

Front and Back Movable Electric Lift | 1EA | |
Cooling Blower | 1EA | |
Electric Control Panel | 1Sheet | |
Vacuum Suction Filter | 1SET | |
N2 Sub Tank ( 3㎥ ) | 1EA | |
